Binance
Klines / Candlesticks
Provides real-time market data from the Binance exchange in Kline (Candlestick) format. All timestamps are in UTC.
Event Filters
| Filter | Type | Description |
|---|---|---|
| symbol | Text | A trading pair. Supported values: "BTCUSDT", "ETHUSDT", "TWTUSDT" |
| interval | Text | Time interval for a kline. Supported values: "1s", "1m", "3m", "5m", "15m", "30m", "1h", "2h", "4h", "6h", "8h", "12h", "1d", "3d", "1w", "1M" |
Note: Invalid filter values will not produce an error, but your process will silently stop receiving events.
Result Payload
| Field | Type | Description |
|---|---|---|
| symbol | Text | A trading pair |
| numberTrades | Integer | Number of trades |
| lowPrice | Real number | Low price |
| closeTime | Integer | Kline close time |
| highPrice | Real number | High price |
| openPrice | Real number | Open price |
| baseAssetVolume | Real number | Base asset volume |
| startTime | Integer | Kline open time |
| interval | Text | Interval |
| closePrice | Real number | Close price (the latest price) |
| quoteAssetVolume | Real number | Quote asset volume |
Sample Payload
{
"symbol": "BTCUSDT",
"numberTrades": 7142,
"lowPrice": 109599.2,
"closeTime": 1748242799999,
"highPrice": 109714.29,
"openPrice": 109650.0,
"baseAssetVolume": 53.85652,
"startTime": 1748239200000,
"interval": "1h",
"closePrice": 109698.53,
"quoteAssetVolume": 5905274.2440748
}

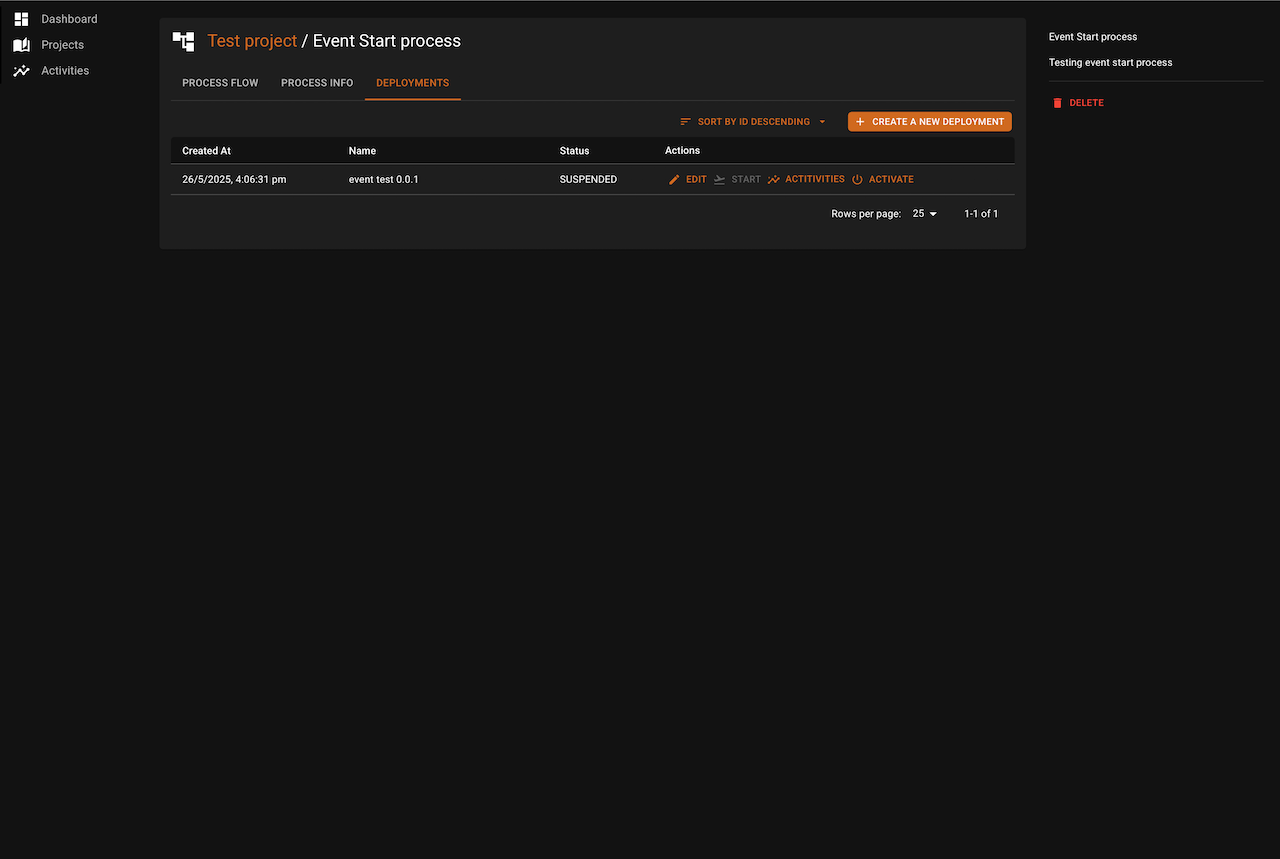

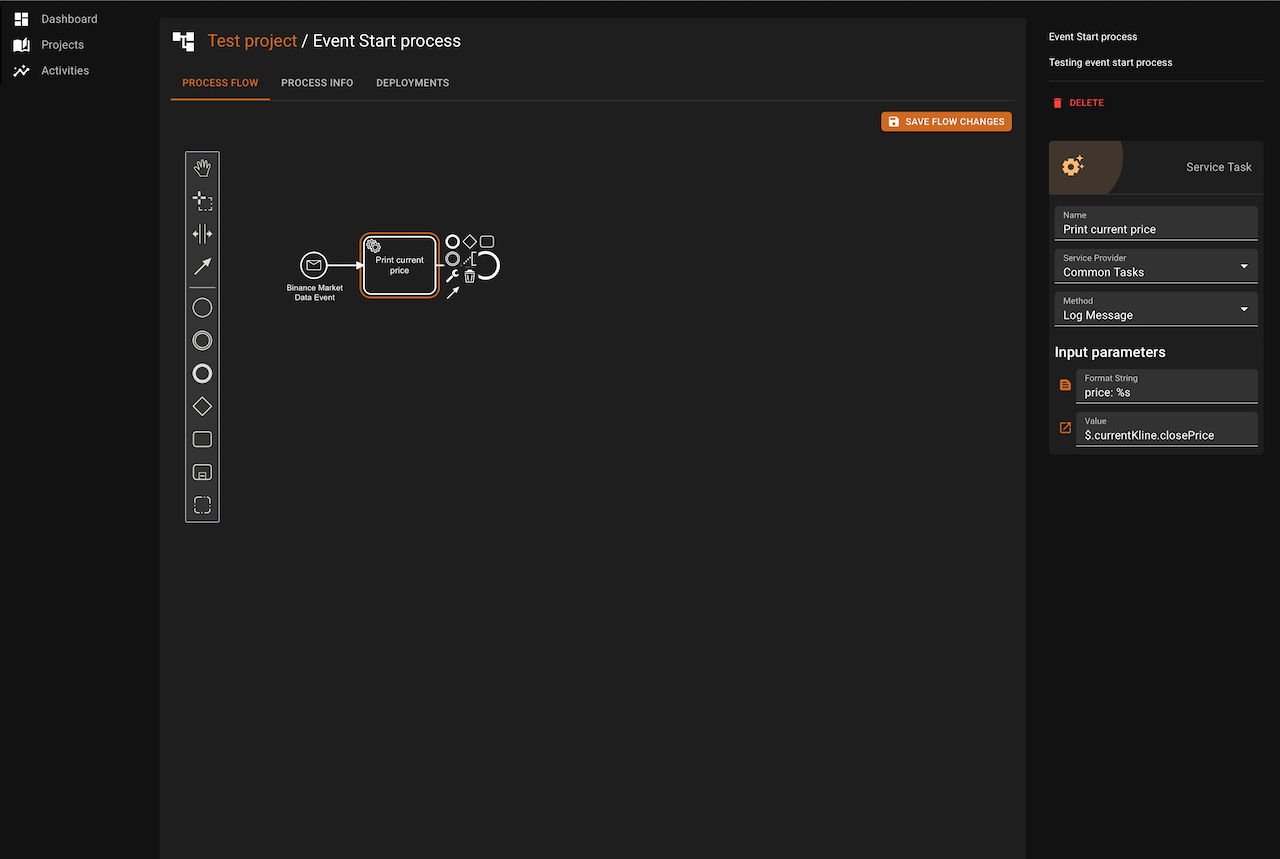

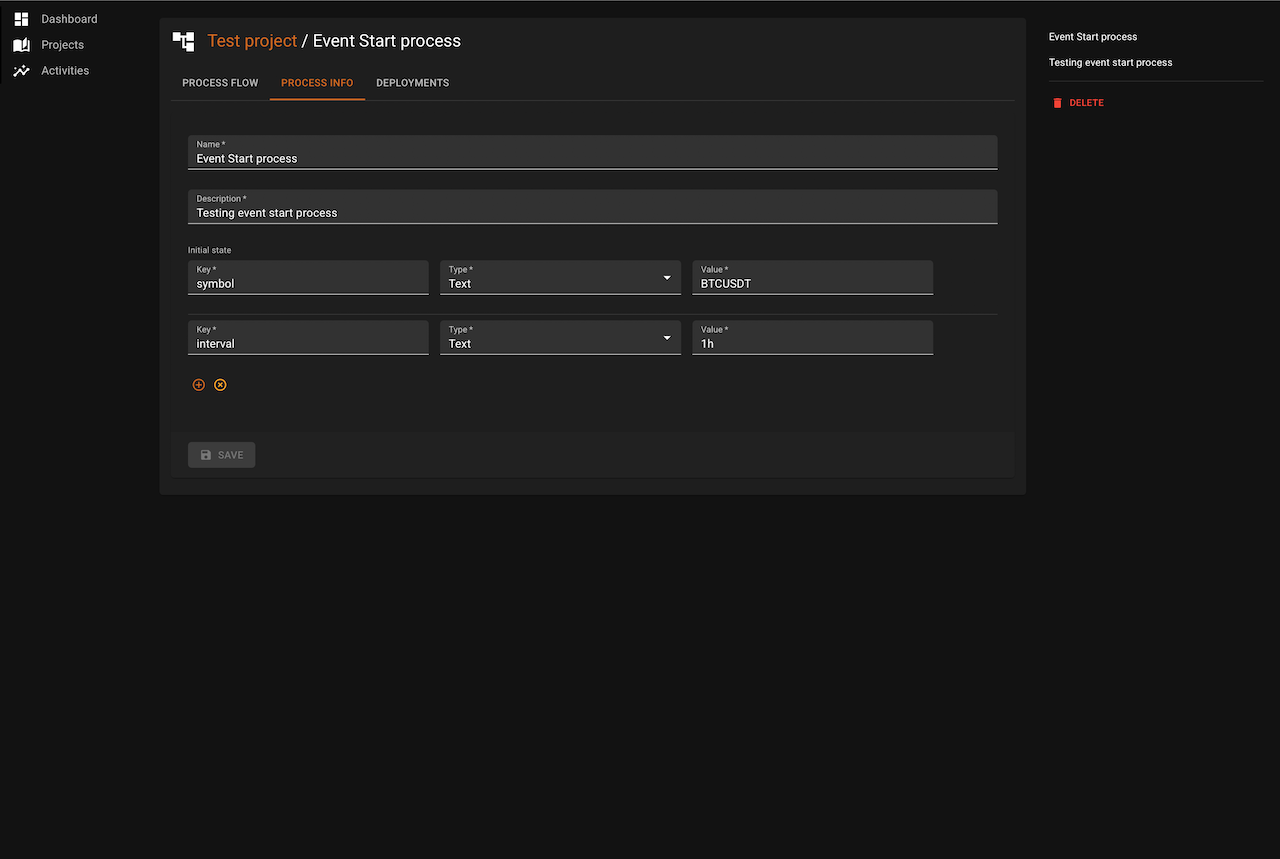

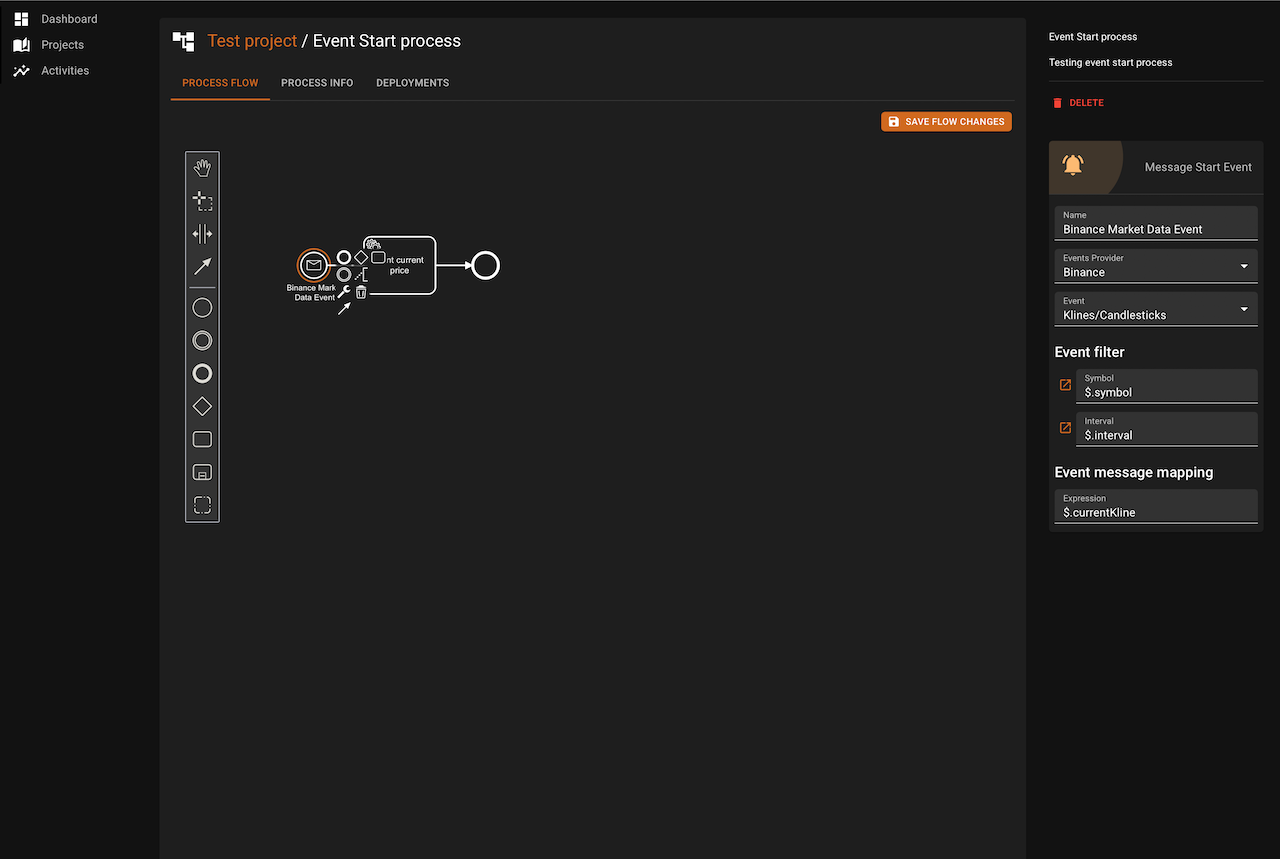

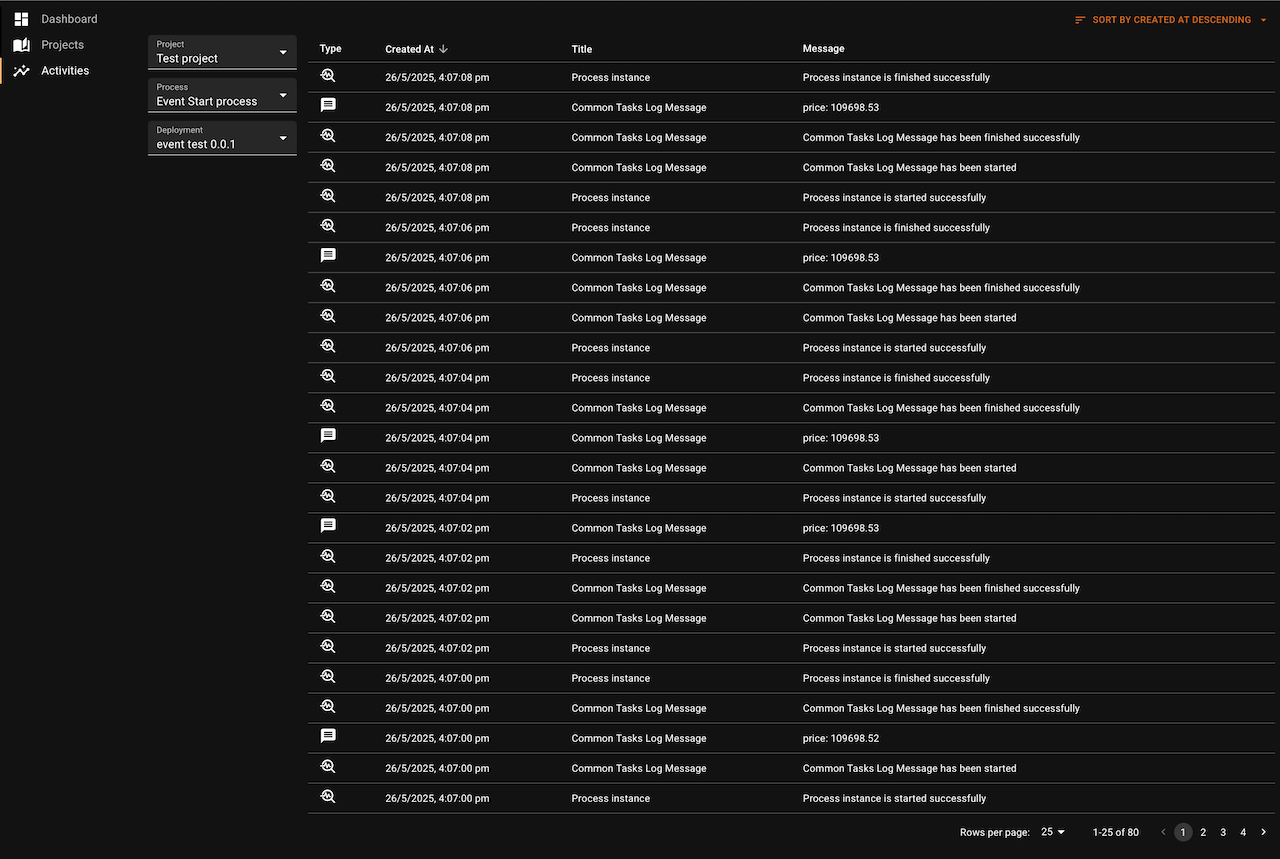

Screenshots
